Contact with a purpose.
Foam rings and wrapped spacers define the proposed support and separation around eight cedar timbers.
PNZ01870 / Timber packingProposed design · 72 components
Rotate. Open every layer. Look inside.Explore the saved plan.
Drag to rotate. Select a component to understand its role.
Open 3D when you are ready. Nothing moves automatically.

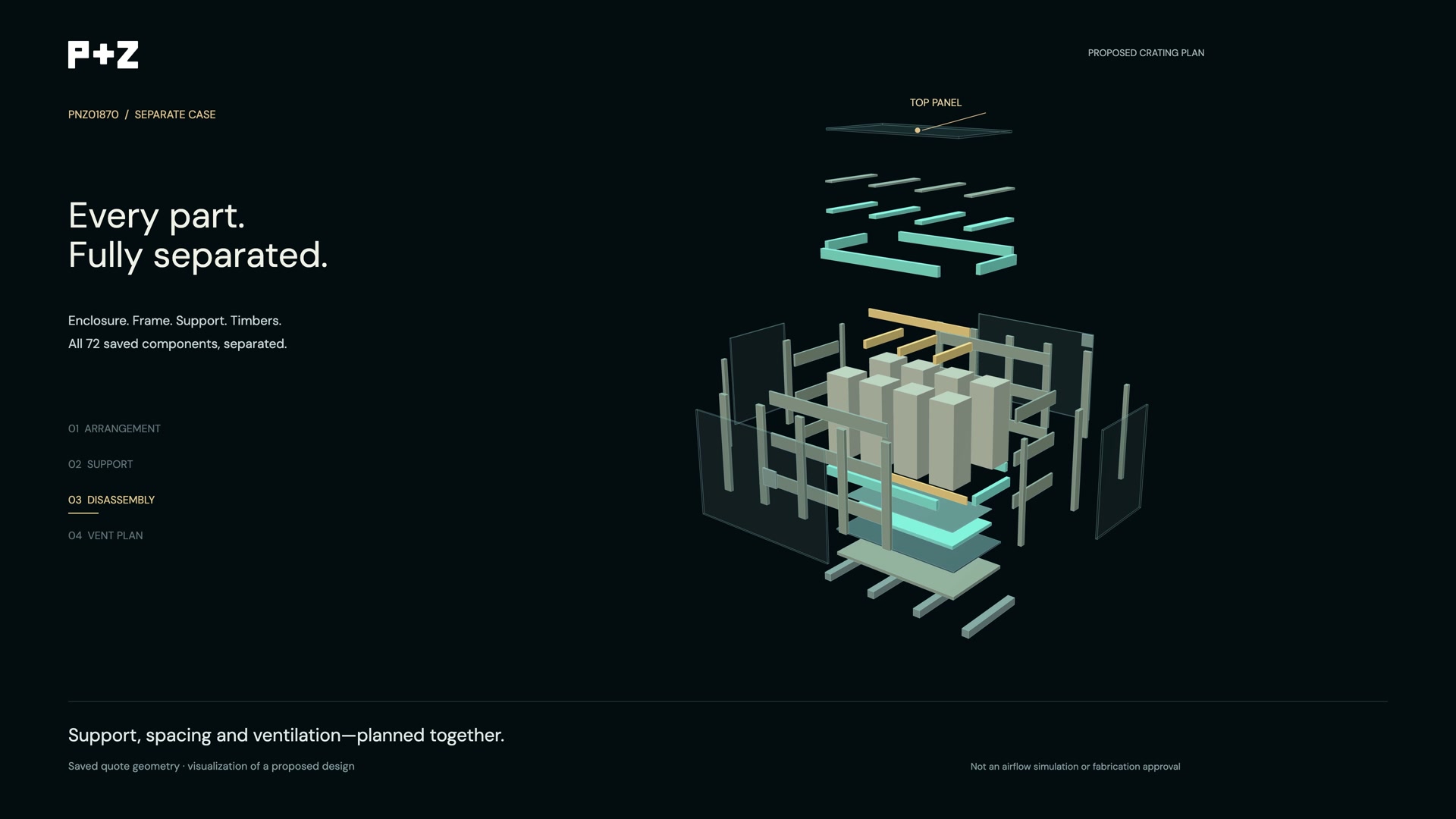

Every layer, visible.
Open the face and back panels, side and top enclosure, frame, floor layers and internal supports. Return everything to its saved assembled position.
Space for circulation.
One steel vent is planned in each removable panel. Support positions and open space are reviewed together; the view does not simulate airflow.
A proposed design from the PNZ01870 quotation. Saved part dimensions and assembled positions are preserved. Separated positions are an inspection diagram, not a physical disassembly sequence or fabrication approval. Client identity and pricing are omitted.
